HT19

RF Android Mobile

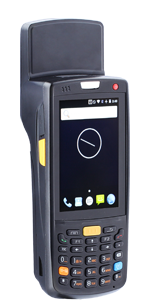

HT19 is an Android-based mobile intelligent terminal for enterprise-class application. Customised with RF module for near field data transmission between EDMI meters and HT19 wirelessly, this mobile terminal is designed to read data instantaneously with the latest cellular and wireless network around the world for seamless data transmission.

Product Available In:

  • Africa & Middle East
  • Americas
  • Asia
  • Australasia
  • Europe

Key Features

Key Specifications

Supported Meter Types:
  • Mk31
  • Mk32 series
Functionalities
  • Reading of energy data
  • Reading of tamper events
  • Remote relay control
  • Manual data upload through USB port
  • Optional¬†8 megapixel LED flash camera
Wireless Communications
  • Meter reading communication

– RF (433/915 MHz)

  • Headend software communication

– GSM/WCDMA/CDMA2000 (Optional)

  • Others

– Optional Infrared
– WiFi – IEEE 802.11 b/g/n
– Bluetooth

Operating System
  • Android 6.0
Dimension and Weight
  • 188mm (H) x 72mm (W) x 43mm (D)
  • Weight: 320g (standard battery included)
