Electricity Metering Devices

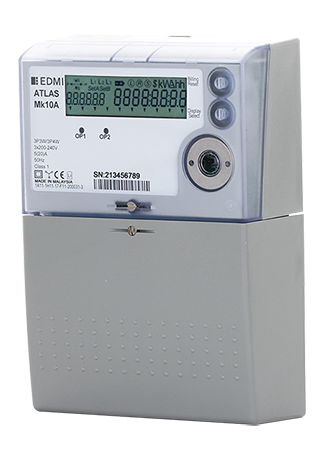

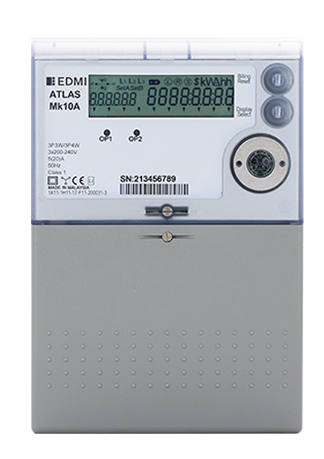

Mk10A

Three Phase CT/WC Smart Meter

  ATLAS – Class 1 and Class 2

The Mk10A is another addition to the Atlas series which enhances the Mk10 meter with additional communications capabilities for use in Power Quality indication, advanced commissioning functionalities and larger memory storage.

Product Available In:

  • Africa & Middle East
  • Americas
  • Asia
  • Australasia
  • Europe

Key Features

Standards and Compliance

  • Class 1 and Class 2
  • IEC 62052-11, 62052-31, 62053-21, 62053-23
  • AS 62052.11, 62053.21, 62053.23
  • EN 50470-1, 50470-3
  • NMI M6

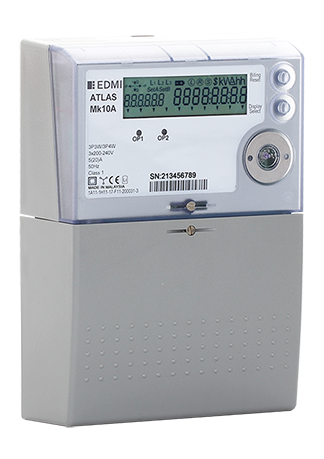

Key Specifications

Voltage
  • Nominal Voltage: 220V – 240V
  • Operating Range: 0.8Un – 1.15Un
  • Frequency: 45Hz – 65Hz
Current
  • CT Range: 1/6A, 5/20A
  • WC Range: 5/100A, 10/100A
  • Burden: <0.5VA/phase
Dimension and Weight
  • 210mm (L) x 166mm (W) x 74mm (D)
  • Weight: 2 kg
