Electricity Metering Devices

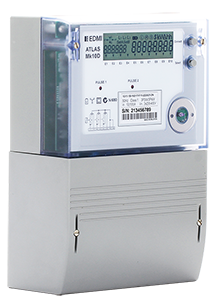

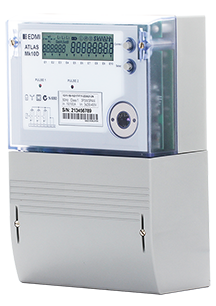

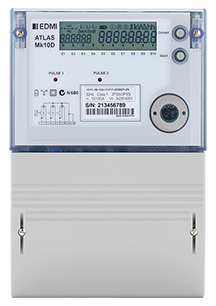

Mk10D

Three Phase Smart Meter with Disconnect Feature

   ATLAS – Class 1 and Class 2

Built on the advanced Atlas metering platform, the Mk10D adds three 100A UC3 compliant relays into the meter which allows for disconnection and reconnection of electrical services remotely.



Product Available In:

  • Africa & Middle East
  • Americas
  • Asia
  • Australasia
  • Europe

Key Features

Standards and Compliance

  • Class 1 and Class 2
  • IEC 62052-11, 62052-21, 62053-21, *62052-31, 62053-23
  • AS 62052.11, 62052.21, 62053.21, 62053.23, 62052.31
  • NMI M6

*available in manufacturing codes with prefix 1Dx3

Key Specifications

Voltage
  • Nominal Voltage: 220V – 240V
  • Operating Range: 110-130V, 176V – 276V
  • Frequency: 45Hz – 65Hz
Current
  • WC Range: 5/100A, 10/100A
  • Burden: <0.5VA/phase
Dimension and Weight
  • Standard version: 262mm (L) x 175mm (W) x 95mm (D)
  • Extended version: 290mm (L) x 175mm (W) x 95mm (D)
  • Weight: 2.5 kg
