Electricity Metering Devices

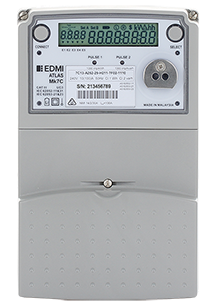

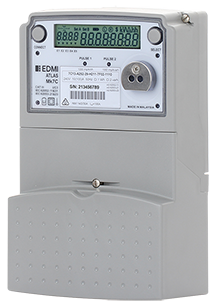

Mk7C

Single Phase Smart Meter with Disconnect and Reconnect Feature

   ATLAS – Class 1 and Class 2

Built on the advanced Atlas metering platform, the Mk7C is a single meter with an integrated 100A UC3 compliant relay which allows disconnection and reconnection of electrical services remotely.

Product Available In:

  • Africa & Middle East
  • Americas
  • Asia
  • Australasia
  • Europe

Key Features

Standards and Compliance

  • Class 1 and Class 2
  • IEC 62052-11, 62052-21, *62052-31, 62053-21, 62053-23
  • AS 62052.11, 62052.21, 62053.21, 62053.23
  • NMI M6

*available in manufacturing codes with prefix 7Cx3

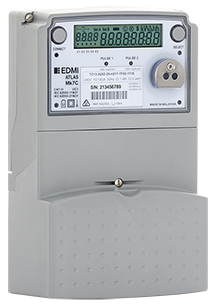

Key Specifications

Voltage
  • Nominal Voltage: 220V – 240V
  • Operating Range: 176V – 276V
  • Frequency: 45Hz – 65Hz
Current
  • WC Range: 5/100A, 10/100A
  • Burden: <0.5VA/phase
Dimension and Weight
  • 163.5mm (L) x 134mm (W) x 51mm (D)
  • Weight: 1.1 kg or 1.3 kg with modem
