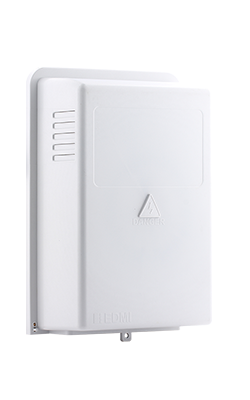

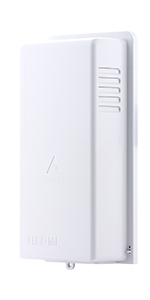

Plastic Enclosures for EDMI Meters

A competitive range of wall mounted or pole mounted plastic enclosures for energy meters. Fit for all single phase and three phase EDMI meters. Suitable for residential installations.

Product Available In:

  • Africa & Middle East
  • Americas
  • Asia
  • Australasia
  • Europe
Download Enclosures Factsheet Contact Us

Key Features

Key Specifications

Supported Meter Types:
  • All EDMI 1P and 3P meters
Functionalities
  • Door opening sensing
  • Water drainage holes
  •  Ventilation
Capacity
  • Size 2 enclosure: Fit for 1 – 4 DIN rail meters or one 1 phase meter
  • Size 4 enclosure: Fit for 5 – 8 DIN rail meters or one 3 phase meter
Dimension and Weight
  • Size 2: 421mm (H) x 215mm (W) x 105mm (D)
  • Size 4: 421mm (H) x 295mm (W) x 140mm (D)
  • Weight: 0.86 kg (Size 2), 1.08 kg (Size 4)
