Gas Metering Devices

GR-6BU

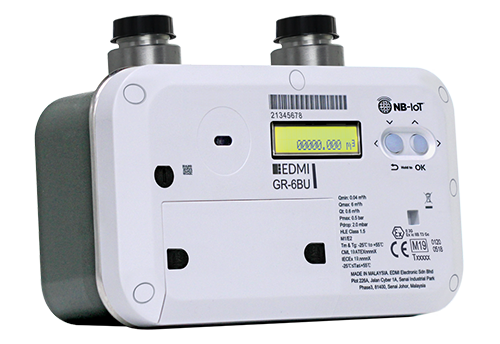

Residential Ultrasonic Smart Gas Meter

The GR-6BU is a G4 sized residential Smart Gas Meter using ultrasonic flow measurement technology. It supports NB-IoT communication technology and enables 10-year battery life with remote shut-off valve functionality. GR-6BU also supports secured DLMS standards.

*This model is available in Australasia with different specification. To view product details, please go to Australasia site by clicking the global map on the top right.

Product Available In:

  • Africa & Middle East
  • Asia
  • Australasia
  • Europe

Key Features

Standards and Compliance

  • Class 1.5
  • EN 14236:2018 (MID)
  • OIML R 137-1&2: 2012 (optional)
  • ATEX – Directive 2014/34/EU (Zone 2)
  • CE
  • RoHS
  • WEEE

Key Specifications

Measurement
  • Measurement accuracy:
    0.04m³/h to 0.6m³/h <±3%,
    0.6m³/h to 6m³/h ≤±1.5%
Dimension and Weight
  • 162mm (H) x 235.4mm (W) x 85.8mm (D)
  • Weight: 2.2kg
