Electricity Metering Devices

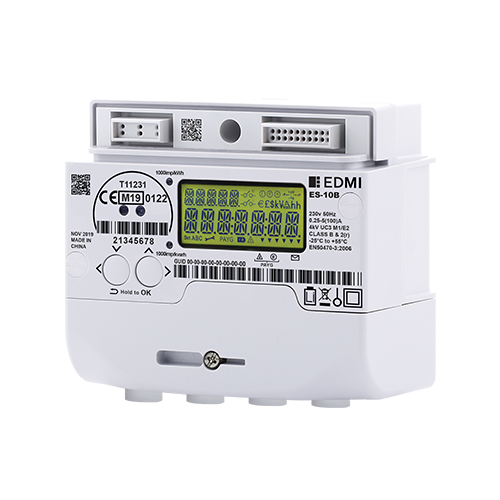

ES-10B

Residential Single Phase SMETS2 Electricity Meter

Class B and Class A

Designed for the residential smart meter rollout in Great Britain, this 4 terminal single phase electricity meter is the second generation version within our SMETS2 compliant solution.

Taking learnings from the first generation meter, the ES-10B is a more refined SMETS2 compliant electricity meter with 100A main disconnect relay, dedicated secure microcontroller and with multiple interfaces including Zigbee and DLMS.

Product Available In:

  • Africa & Middle East
  • Americas
  • Asia
  • Australasia
  • Europe

Key Features

Standards and Compliance

  • MID Class A or Class B, Class 1 or 2
  • GBCS v1.1, SMETS2 v2.0, CPA v1.2, DLMS CTT 3.0, Zigbee 1.2b, ICHIS v1.0, Welmec 7.2 2018, RoSH 2012, WEEE 2013

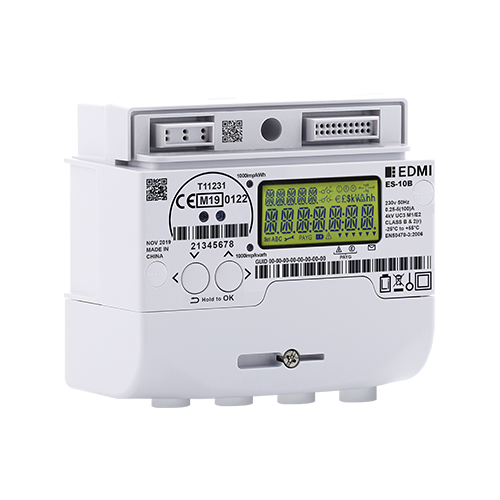

Key Specifications

Voltage
  • Nominal voltage of 230V, 50Hz, 5(100) Class 1/(MID Class B)
  • Normal Operating Range: 207V – 253V
  • Frequency: 47Hz – 50Hz
Current
  • WC Range: 0.25/100A, 5/100A
Dimension and Weight
  • 120mm (H) x 130mm (W) x 65mm (D)
  • Weight: 0.75 kg
