Electricity Metering Devices

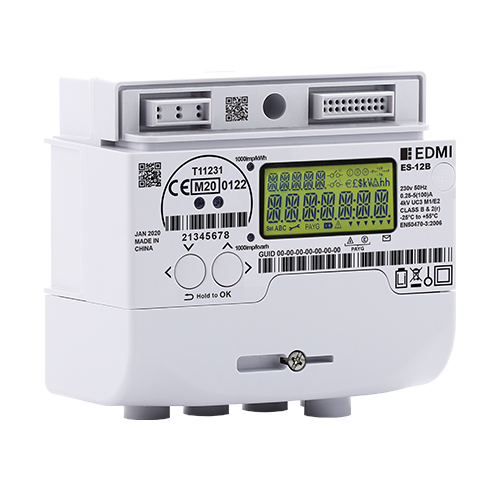

ES-12B

5 Terminal Residential Single Phase SMETS2 Electricity Meter

Class B and Class A

Designed for the residential smart meter rollout in Great Britain, this 5 terminal single phase electricity meter is an addition to our range of SMETS2 compliant solutions.

With two 100A main disconnect relays, dedicated secure microcontroller and multiple communications interfaces including Zigbee and DLMS, the ES12B is accurate and can operate in prepayment mode.

Product Available In:

  • Africa & Middle East
  • Americas
  • Asia
  • Australasia
  • Europe

Key Features

Standards and Compliance

  • MID Class A or Class B, Class 1 or 2
  • GBCS v1.1, SMETS2 v2.0, CPA v1.2, DLMS CTT 3.0, Zigbee 1.2b, ICHIS v1.0, Welmec 7.2 2015, RoHS 2012, WEEE 2013

Key Specifications

Voltage
  • Nominal voltage of 230V, 50Hz, 5(100) Class 1/(MID Class B)
  • Normal Operating Range: 207V – 253V
  • Frequency: 47Hz – 52Hz
Current
  • WC Range: 0.25/100A, 5/100A
Dimension and Weight
  • 120mm (H) x 130mm (W) x 65mm (D)
  • Weight: 0.8 kg
